CompTIA 220-1101 Practice Test

Explanation: RAID 10 combines the benefits of RAID 0 and RAID 1. It uses a striped configuration across multiple disks (similar to RAID 0) to provide high-speed read and write access. Additionally, it also mirrors the striped array onto a second set of drives (similar to RAID 1), providing redundancy in case of a drive failure.

Answer: See the detailed solution in explanation below.
Explanation:

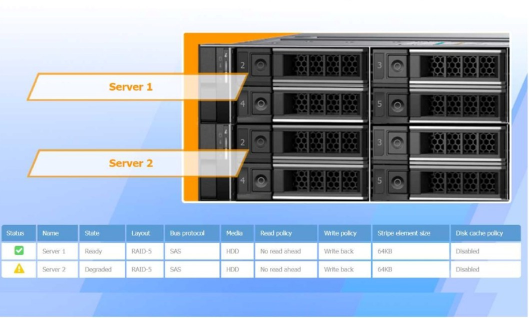

The degraded status on Server 2 indicates a RAID-5 issue, typically due to a failed or failing drive. In RAID-5 configurations, when one drive fails, the system can still operate but with reduced performance as parity data is used to rebuild missing data on-the-fly.
Recommended Replacement Drive:To minimize performance degradation, the replacement drive should be:
✑ SAS HDD with the same specifications (64KB stripe size, no read-ahead, and write-back policy).
✑ Matching the configuration exactly ensures seamless integration and optimizes recovery speed in the RAID-5 array.
In RAID-5, degraded performance is expected when one drive fails, as parity data needs to rebuild missing information during each read/write process. Replacing the failed drive restores the RAID array to optimal status, reducing the load on existing drives and returning the system to normal read/write performance. The write-back policy and disabled disk cache settings are designed to reduce latency and increase efficiency, essential for handling real-time applications. A user reports poor performance on the application server.
INSTRUCTIONS

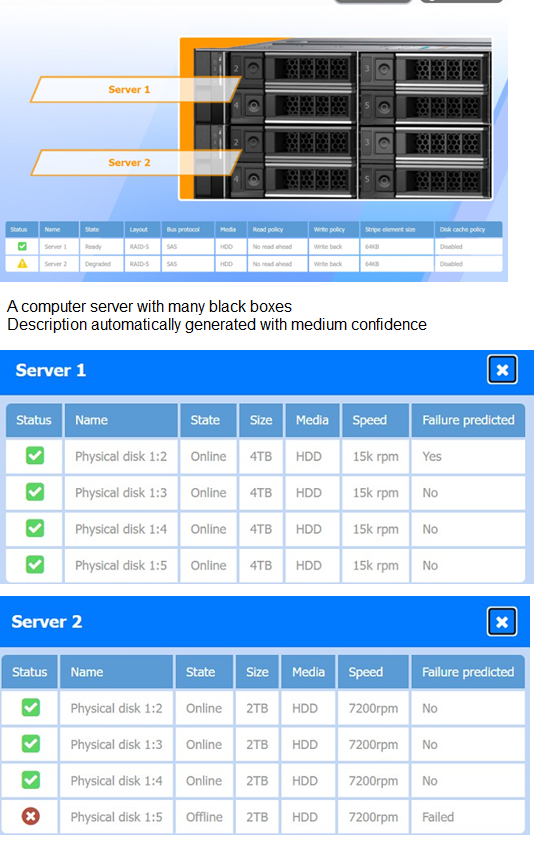

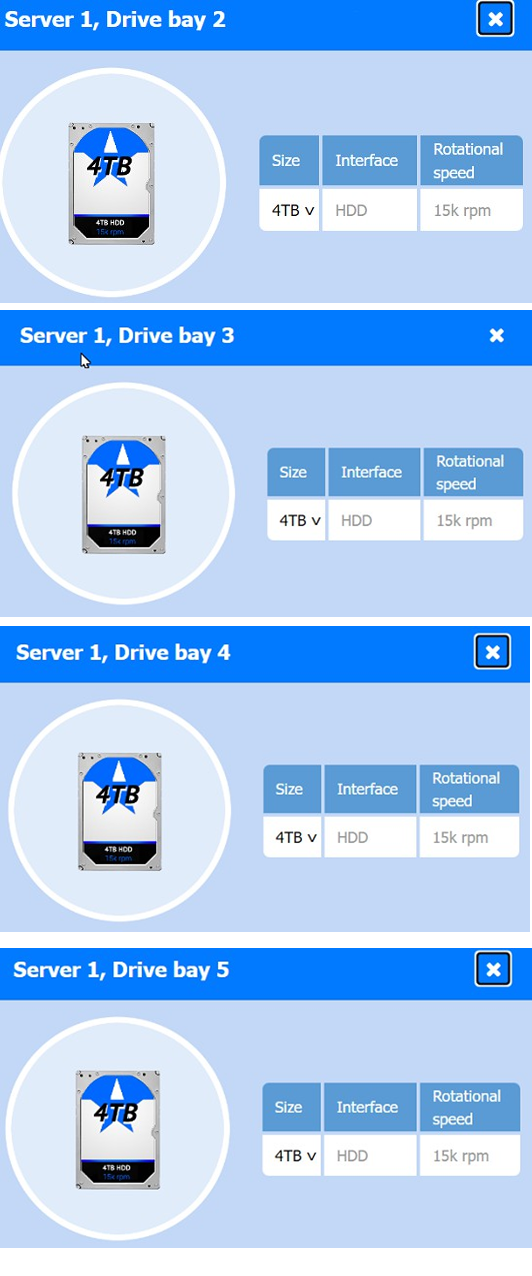

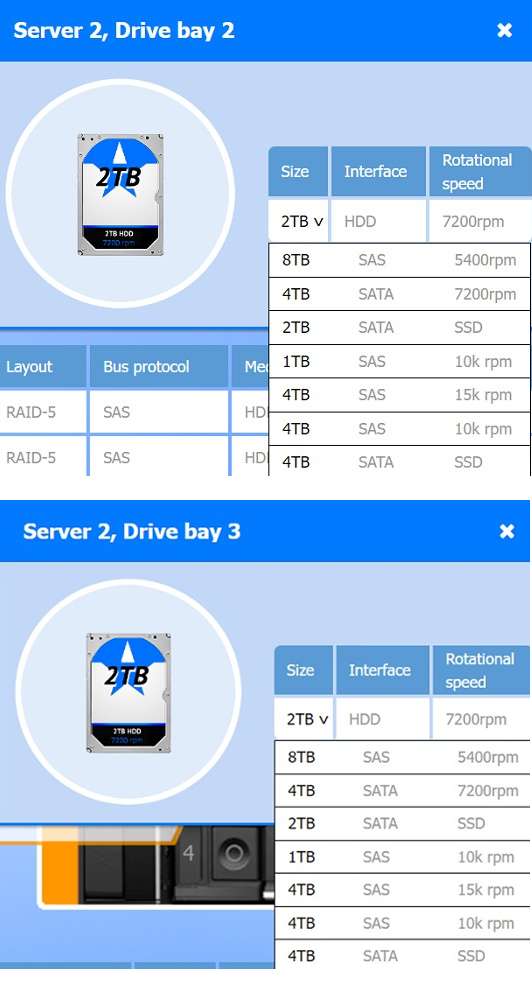

Click on Server 1 and Server 2 and review the information presented in each chart to determine which drives need to be replaced. Select the appropriate replacement drive that should be used, for the least performance degradation to the server.

Explanation: The Domain Name System (DNS) is responsible for translating domain names into IP addresses. By blocking malicious sites from resolving correctly, the DNS server is able to prevent the user from accessing those sites. Therefore, the DNS server setting on the user’s router needs to be changed to enable this functionality123.

Explanation: A private cloud deployment model provides the company with complete control over how the data is managed. This is because a private cloud is managed solely by the organization and resides on-premises or in a data center. Therefore, a private cloud deployment model is the best option for this scenario.

Explanation: If a computer is not booting and the onboard speaker emits beeps, it can indicate a hardware issue. One of the most common causes of beep codes is overheating, which can occur if the processor's fan is not properly installed and running. The processor's fan is responsible for cooling the processor and preventing damage to the internal components.

Explanation: The MOST efficient next step the technician should do is to test the output resolution1. The issue of a projector that will not display any images could be related to the output resolution1. If the output resolution is not compatible with the projector, the projector will not display any images1. Calibrating the image, replacing the bulb, or cleaning the fans may not be effective1.

If a projector is not displaying any images despite verifying that the computer output and cable are providing a good video signal, the technician should test the output resolution. The output resolution of the computer may not be compatible with the projector, which can cause the projector to not display any images.

Explanation: The two sets of colors on the motherboard indicate that it supports dualchannel memory, which doubles the bandwidth available to the memory controller. Dualchannel memory requires two identical memory modules to be installed in pairs in the correct slots to work effectively. In this case, the user can install two identical RAM modules to enable dual-channel memory, which will provide better performance when using multimedia applications that consume a lot of memory.

Explanation: The most common reasons you may be seeing the "No Signal" message: The projector and the source device are not connected correctly. The first action should be to check the video cable and replace it if necessary, as the error message suggests that the projector is not receiving a signal from the laptop. Verifying that the projector is turned on and checking the bulb would come after verifying the video cable.

Explanation: A Virtual LAN (VLAN) is a network topology that allows a switch to be divided into separate logical networks. This allows for the creation of multiple broadcast domains within a single physical network, improving network segmentation and security. With VLANs, you can segment your network so that different departments, applications, or users are isolated from each other, improving network security and performance.

Explanation: BSoDs can be caused by poorly written device drivers or malfunctioning hardware, such as faulty memory, power supply issues, overheating of components, or hardware running beyond its specification limits. In the Windows 9x era, incompatible DLLs or bugs in the operating system kernel could also cause BSoDs.
